Durham Duplex

Patent US855561

Invention Razor

Filed Saturday, 16th March 1907

Published Tuesday, 4th June 1907

Inventor Thomas Claude Durham

Language English

CPC Classification:
B26B21/10
  • B26B21/10
    Safety razors with one or more blades arranged longitudinally to the handle
  • B
    Performing Operations; Transporting
  • B26
    Hand Cutting Tools; Cutting; Severing
  • B26B
    Hand-Held Cutting Tools Not Otherwise Provided For
  • B26B21/00
    Razors of the open or knife type; Safety razors or other shaving implements of the planing type; Hair-trimming devices involving a razor-blade; Equipment therefor
  • B26B21/08
    Razors of the open or knife type; Safety razors or other shaving implements of the planing type; Hair-trimming devices involving a razor-blade; Equipment therefor involving changeable blades

For a full resolution version of the images click here

A PDF version of the original patent can be found here.

United States Patent Office.

Thomas C. Durham, of New York, N. Y. Razor.
No. 855,561. Specification of Letters Patent. Patented June 4, 1907.
Application filed March 16, 1907. Serial No. 362,751

To all whom it may concern:

Be it known that I, Thomas C. Durham, a citizen of the United States, residing at New York, in the county and State of New York, have invented a new and useful Razor, of which the following is a specification.

This invention relates to an improvement in razors and one of the objects thereof is to provide a device in which a thin, replaceable blade is used and which may be used in the same manner as one of the usual type.

Another object is to provide a device of this character in which devices are employed for locking the blade in position, these devices being located beyond the ends of the blade.

With these and other objects in view, the invention consists in certain constructions and combinations which will be hereinafter fully described and then specifically pointed out in the claims hereunto appended.

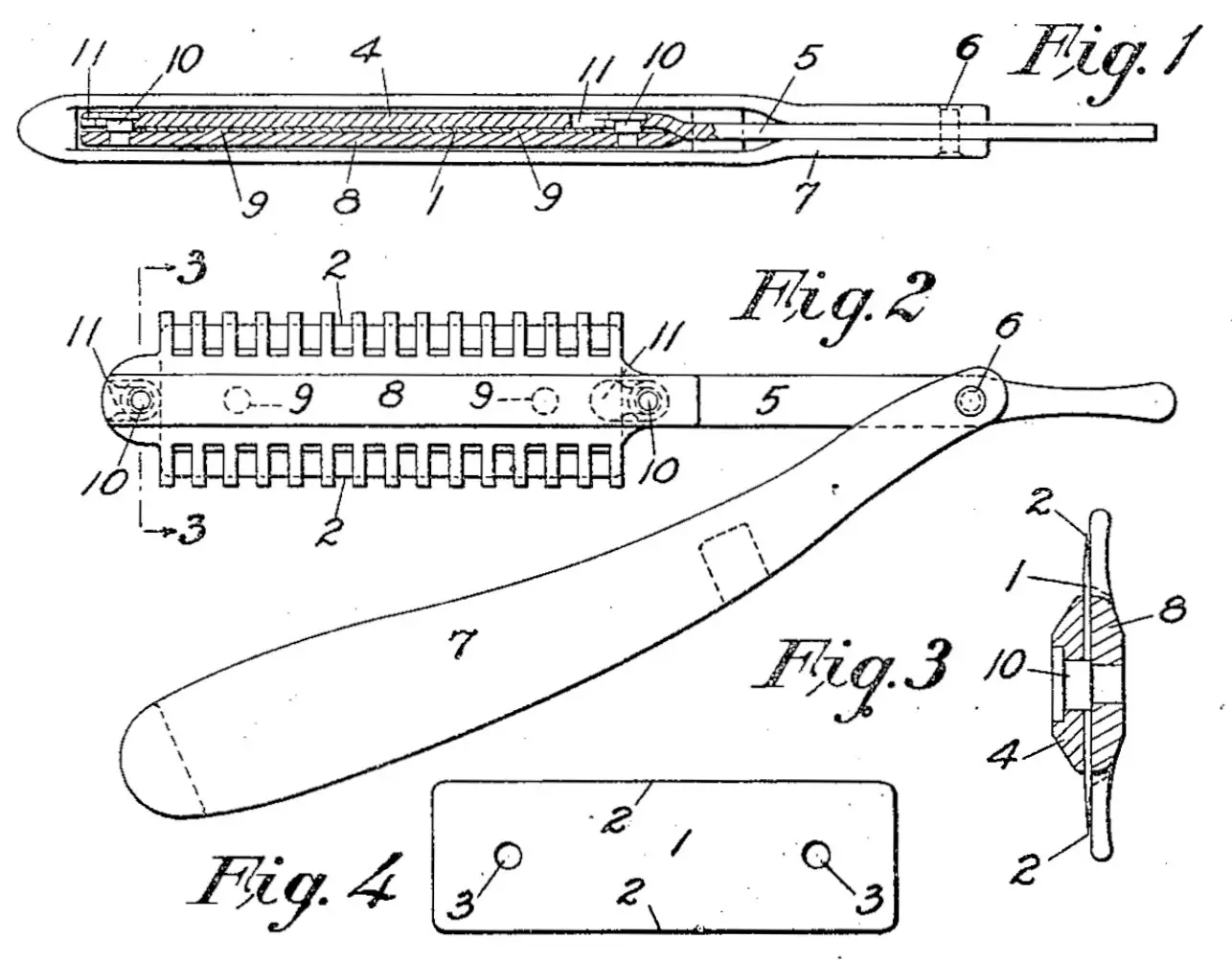

In the drawings which form a part of this specification and in which like characters of reference indicate the same parts, Figure 1 is a plan view, partly sectional, of a device constructed in accordance with the invention; Fig. 2 is a side elevation of the structure shown in Fig. 1; Fig. 3 is a cross-sectional view on an enlarged scale, taken on the line 3—3-in Fig. 2; and Fig. 4 is a detail view of a blade.

In the device selected to illustrate the invention there is provided a thin blade 1 which has two cutting edges 2 and a plurality of perforations 3, the purpose of which will be hereinafter explained. There is provided a support for the blade and this support may vary widely in structure. In the best constructions and as shown, a support 4 is provided which is narrower than the blade and extends throughout its length. A shank 5 is extended from one end of the support and this shank is pivoted at 6 to a handle 7 of any suitable structure. A clamp is provided for securing the blade to the support and this clamp may vary widely in structure. In the best constructions and as shown, a substantially flat clamp 8 is used, the clamp being narrower than the blade and extending throughout its length. The clamp 8 is provided with means for positioning the blade between the support and clamp and this means may vary in structure. As shown, two studs 9 carried by the clamp are employed for this purpose, the studs passing through the perforations 3 of the blade.

Means are provided for locking the blade in position, this means being carried by the clamp and located beyond the ends of the blade, engaging the support and having a sliding movement thereon to lock the blade in position. In the best constructions and as shown, the clamp 8 carries two headed studs 10 located beyond the ends of the blade and arranged to slide in countersunk slots 11 in the support.

It will be readily understood that the blade is positioned by bringing the studs 9 into register with the perforations 3 of the blade, and that the blade is locked in position by the limited sliding movement of the headed studs 10 in engagement with the slots 11 of the support.

Changes and variations may be made in the structure by which the invention is carried into effect. The invention, therefore, is not to be restricted to the precise details of the structure shown and described.

What is claimed is:

1. In a razor, the combination with a support, of a clamp, a detachable blade, means for positioning the blade between the support and clamp, and means carried by the clamp beyond the ends of the blade engaging the support and having a limited sliding movement thereon to lock the blade in position, substantially as described.

2. In a razor, the combination with a support having a plurality of slots, of a clamp, a detachable blade, means for positioning the blade between the support and clamp, and a plurality of headed studs carried by the clamp beyond the ends of the blade and having a limited sliding movement in the slots of the support to lock the blade in position, substantially as described.

3. In a razor, the combination with a support having two countersunk slots, of a clamp, a detachable blade having two perforations, studs carried by the clamp and engaging the perforations to position the blade between the support and clamp, and two headed studs carried by the clamp beyond the ends of the blade and engaging the slots in the support to lock the blade in position, substantially as described.

In testimony whereof, I have signed my name to this specification in the presence of two subscribing witnesses.

Thos. C. Durham.

Witnesses:

Sydney J. Prescott,

A. B. Witherell.
