Razor Guard

Patent US871036

Invention Safety-Razor

Filed Monday, 14th January 1907

Published Tuesday, 12th November 1907

Inventor Leonard Heuser

Language English

CPC Classification:
B26B21/02
  • B26B21/02
    Razors of the open or knife type; Safety razors or other shaving implements of the planing type; Hair-trimming devices involving a razor-blade; Equipment therefor involving unchangeable blades
  • B
    Performing Operations; Transporting
  • B26
    Hand Cutting Tools; Cutting; Severing
  • B26B
    Hand-Held Cutting Tools Not Otherwise Provided For
  • B26B21/00
    Razors of the open or knife type; Safety razors or other shaving implements of the planing type; Hair-trimming devices involving a razor-blade; Equipment therefor

For a full resolution version of the images click here

A PDF version of the original patent can be found here.

United States Patent Office.

Leonard Heuser, of New York, N. Y. Safety-Razor.
No. 871,036. Specification of Letters Patent. Patented Nov. 12, 1907.
Application filed January 14, 1907. Serial No. 352,152

To all whom it may concern:

Be it known that I, Leonard Heuser, a citizen of the United States, and a resident of the city of New York, borough of Manhattan, in the county and State of New York, have invented a new and Improved Safety-Razor, of which the following is a full, clear, and exact description.

This invention has for its object to provide a safety attachment simple in construction, effective in operation and durable in use, adapted to be used with razors of ordinary or special construction. Such objects I accomplish by the means illustrated in the accompanying drawings, which embody my invention in its preferred form, and in which

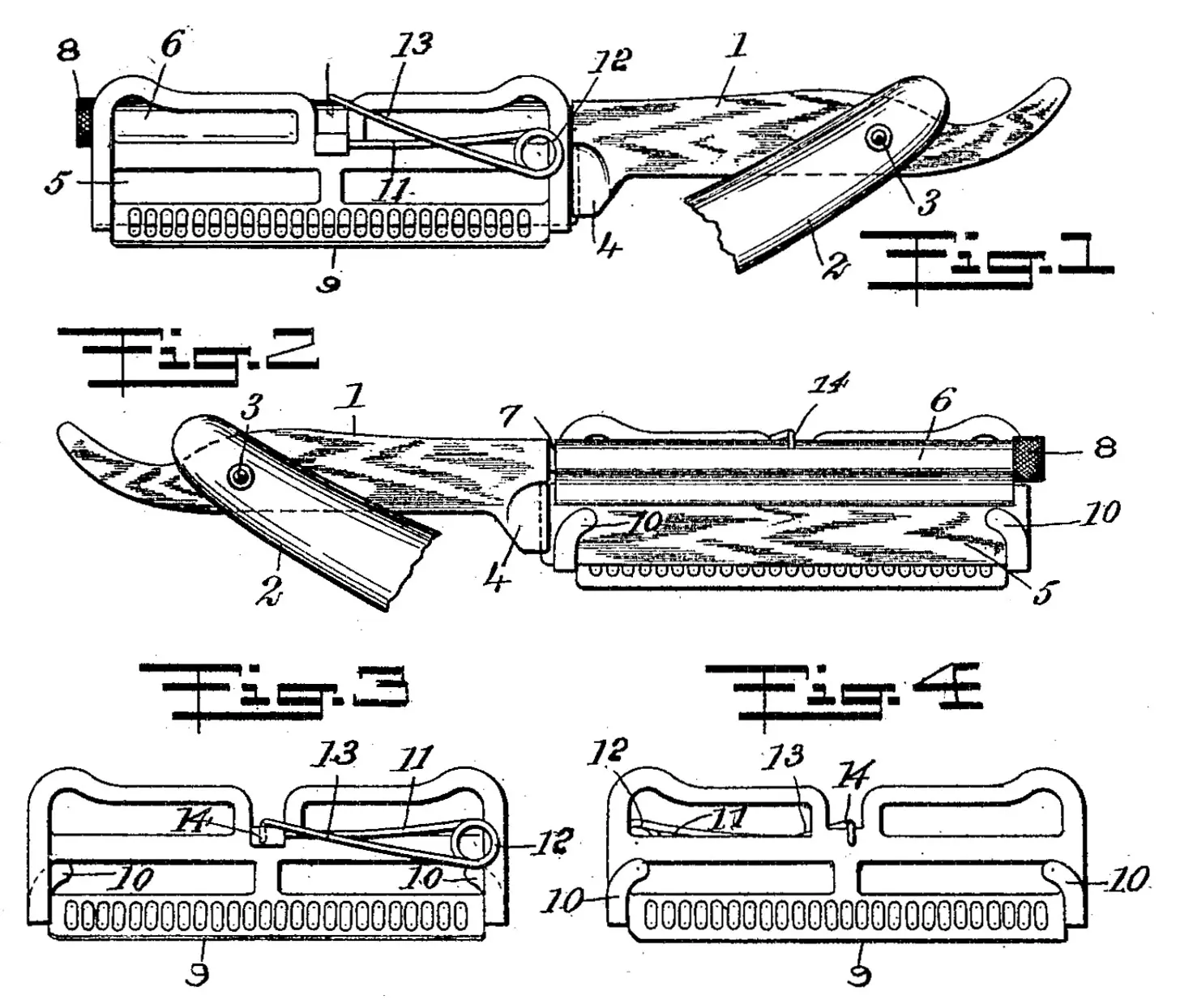

Figure 1 is a side elevation of a device embodying my invention attached to a razor blade; Fig. 2 is the opposite side of the device shown in Fig. 1; Fig. 3 is a side elevation of a guard detached from the razor; and Fig. 4 is an elevation of the opposite side of the guard shown in Fig. 3.

In the accompanying drawings, a device embodying my invention is shown applied to a razor having a shank 1 attached to a handle 2 by means of a pivot 3, these parts being of the ordinary well known construction. The shank is provided with a heel 4 having a slotted recess, indicated by dotted lines in Figs. 1 and 2, adapted to receive the inner end of a blade 5. The back of the blade is provided with a sleeve 6 adapted to receive a stem 7 formed on the shank of the razor, and held in engagement with said sleeve by means of a milled head 8 having a threaded engagement with the outer end of said stem. The razor shown herein is provided with a guard having a longitudinal bearing bar 9 provided with retaining lips 10 adapted to bear against the edge of the razor at the heel and point thereof, and serve as stops to limit the outer movement of the razor relative to that of the bearing bar 9. The guard is held in place on the razor by means of a spring latch having an arm 11 fixedly secured at its end to the central portion of the guard, a coiled loop 12, and a clamping arm 13 having a hooked terminal 14, thereby adapted to exert a lateral as well as a vertical pressure on the back of the razor blade. The guard is readily removed from the razor blade by raising the free end of the clamping arm 13 and releasing the off-set end or hook 14 from engagement with the back of the razor.

Having thus described my invention, what I claim as new and desire to secure by Letters Patent is:

1. A razor guard comprising a main frame having a bearing bar, and retaining lips arranged at the ends of said bar, a spring comprising an arm fixedly attached at its end to the central portion of said main frame, a spiral loop formed integrally with said arm, and an arm formed integral with said loop, provided with a hook end adapted to engage the back of a razor blade and exert a vertical and lateral pressure thereon.

2. A razor guard comprising a main frame having a bearing bar, and retaining lips arranged at the ends of said bar, a spring comprising an arm fixedly attached to the central portion of the main frame and provided with a loop, and an arm extending from said loop and provided with a hooked end adapted to engage the back of a razor blade and exert a vertical and lateral pressure thereon.

In testimony whereof I have signed my name to this specification in the presence of two subscribing witnesses.

Leonard Heuser.

Witnesses:

Robert H. Hardie,

Jno. M. Ritter.
